Low Loss Header 10×1″ 70kW INOX Heat pump

LOW LOSS HEADER STAINLESS STEEL HYDRAULIC BALANCER

• 70 kW
• 3 CIRCUITS
• 2 SUPPLY LINES
• 10×1″
• 2x 1/2″
• drain valve
• automatic air vent included.
• Flow rate: 4000 l/hMaximum balanceroperating temperature: 95°CMaximumbalancer operating without insulation 110°C

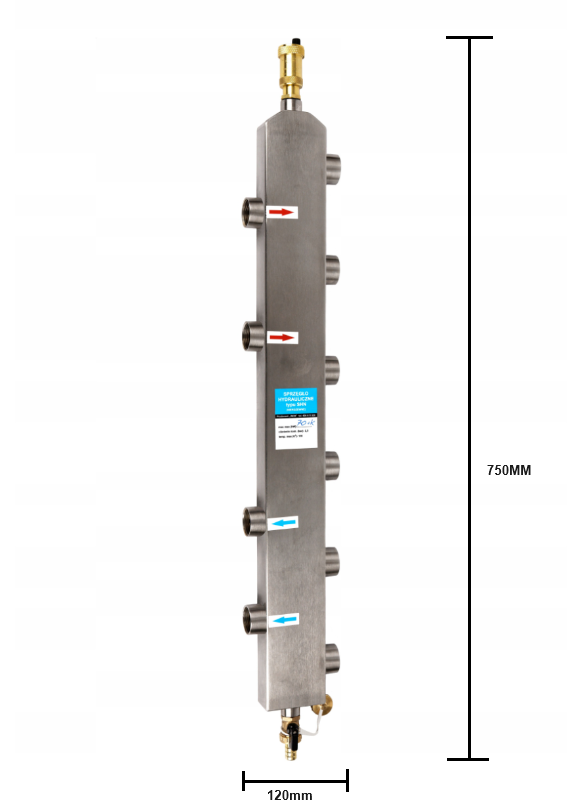

Top quality craftsmanship, made in EUROPE – entirely of high-grade stainless steel (304L and 316). Many satisfied customers! Dimensions: Height: 750 mm, Width: 120 mm, Depth: 40 mm.

This is 100% stainless steel

3-Circuit Hydraulic Manifold with Separator
Application:

The hydraulic balancer is designed to separate the hydraulic circuit of the heat source from the heating system’s circuits. Installing a hydraulic separator ensures the separation of the pump circuits – one for the heat source and another for the heating system. This balance ensures optimal hydraulic conditions for the circulation pumps by automatically balancing the flow rates. This leads to smooth operation of both the heating system and heat source, even when some heat receivers are turned off, and it extends the lifespan of the pumps.

Due to its structure and properties, the balancer also aids in air venting and the separation of impurities, which can be easily removed using the drain valve. Additionally, the manifold can increase the temperature of the water returning to the heat source.
