Description

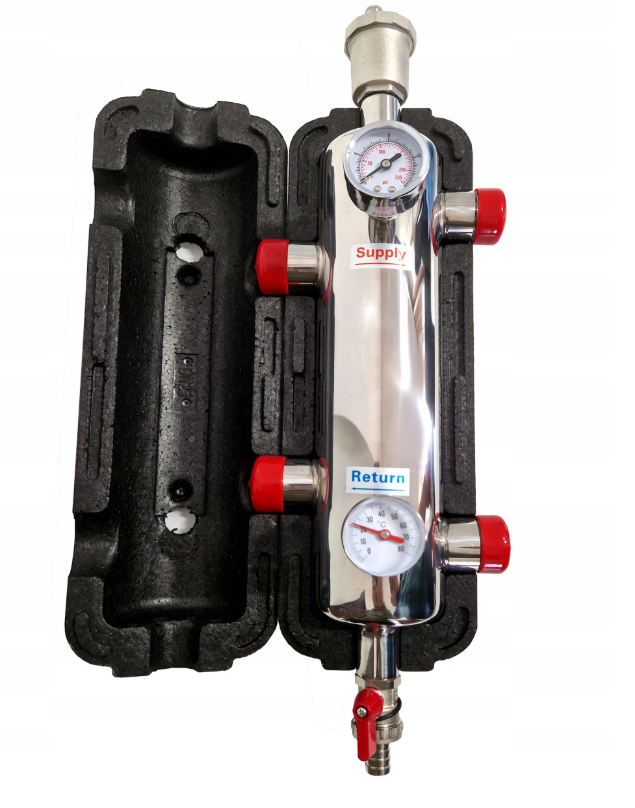

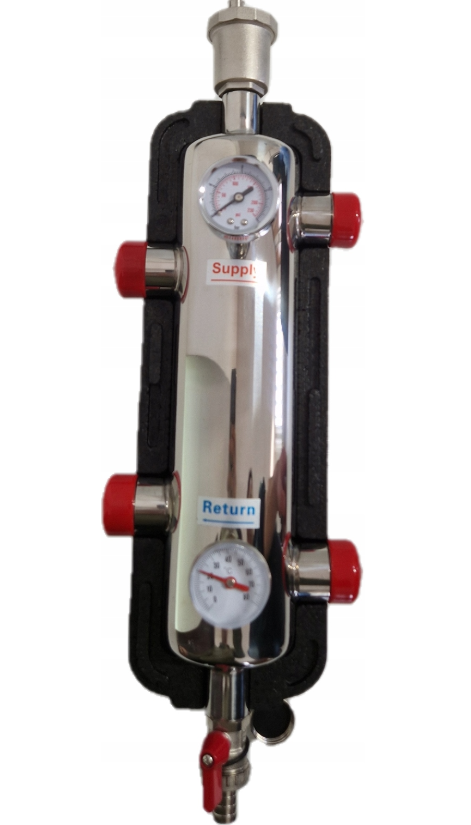

Low Loss Header – Hydraulic Balancer with guages
Boiler Type: Dual-function, Dual-function with DHW tank, Single-function
Material: Stainless Steel 304 GRADE
Designed For: Use on 2 circuits, 1″ connections
Installation Connection: 4x 1″ – external thread
Power: 55kW
Flow Rate: Max 4800 l/h
Capacity: 1405 ml
Nominal Pressure: 10 bar
Max Operating Temperature: 100°C

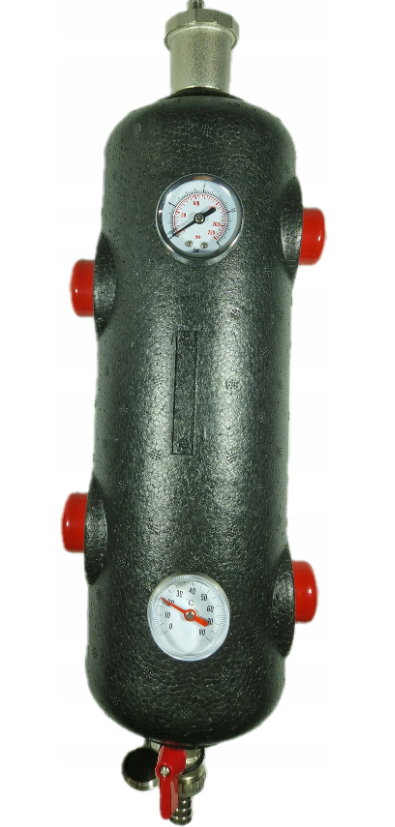

Insulation: Polyethylene Rigid Foam
Compatibility: Suitable for heating pumps up to 15 kW
Key Features:
- Space-Saving Alternative to Buffer Tanks: Replaces buffer tanks when space is limited, ensuring efficient hydraulic separation.
- Compatible with Multi-Source Systems: Works with multiple heat pump systems and mixed heat sources like solar, gas, or coal heating systems.
- Reliable Separation of Pumping Circuits: Separates pumping circuits for single or dual heat sources, ensuring optimal hydraulic balance.
- Balanced Pressure and Temperature Distribution: Prevents fluctuations, protecting system components and maximizing efficiency.
- Enhanced Pump Performance: Distributes flow rates evenly, reducing pump strain and extending service life.
- Air Venting and Impurity Removal: Built-in air vent and impurity removal with a dedicated drain valve for system integrity.
- Temperature Boost Function: Optionally raises the temperature of return water, improving system efficiency.
- Compact and Easy to Install: Comes with mounting brackets, screws, and insulation for quick installation.

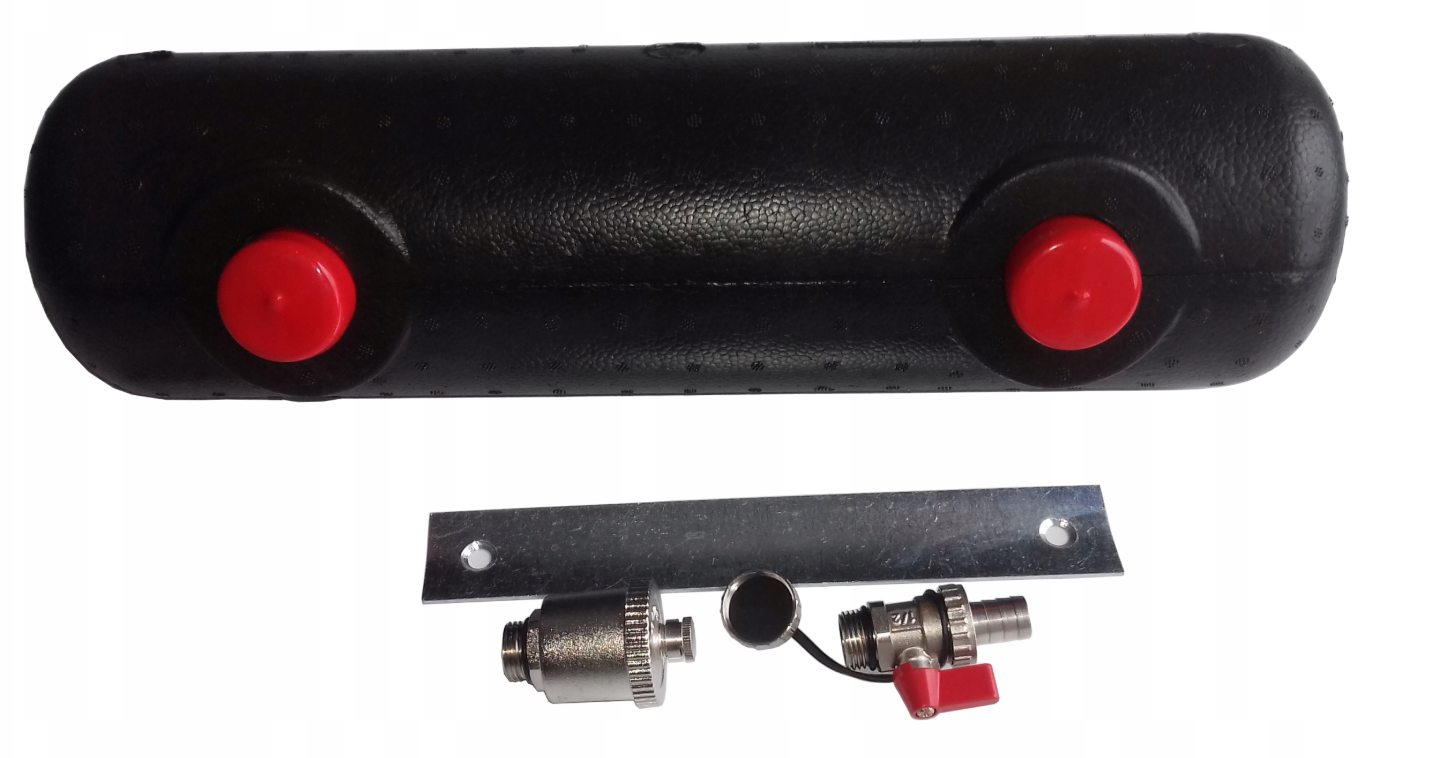

Included Inset:
-
- Hydraulic Balancer

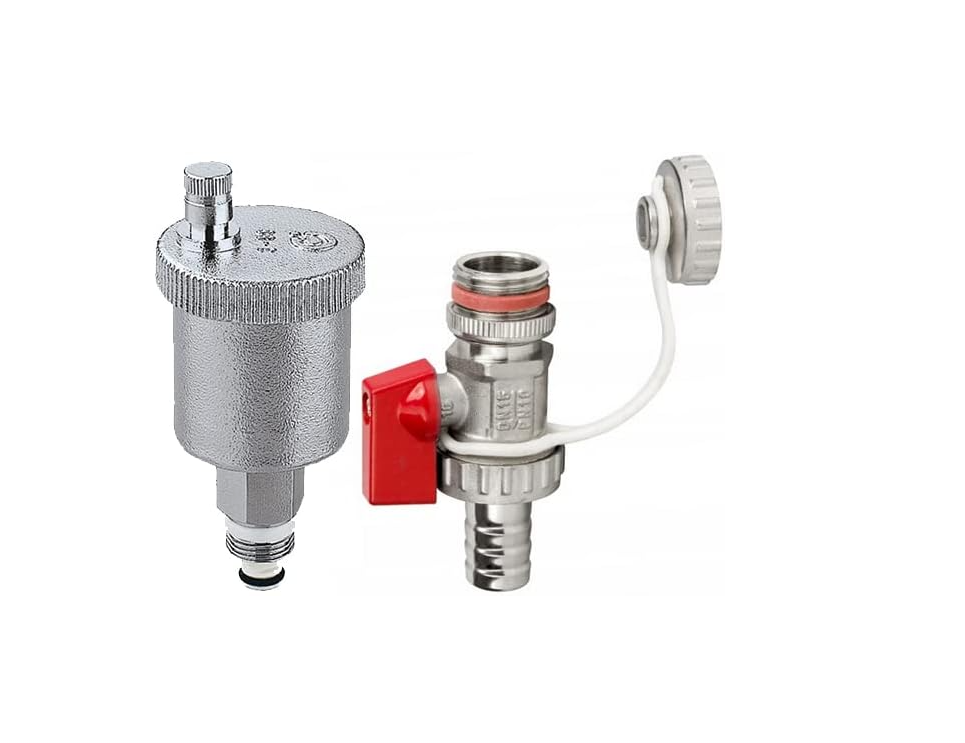

- Automatic Air Vent 1/2″
- Drain Cock 1/2″
- 2 x Guages

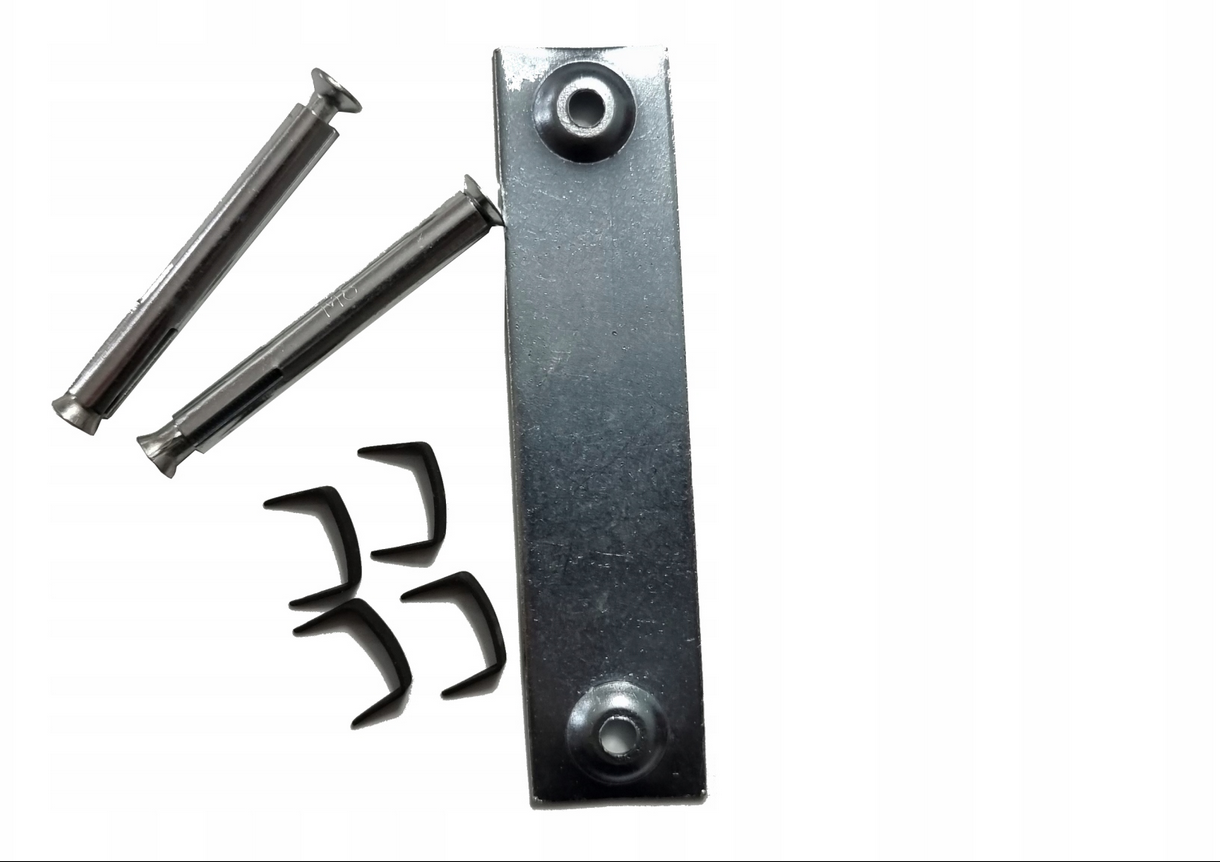

- Mounting Bracket
- Insulation
- Screws
Connection: The Header connects to the heating system using external threads 1″.
