Description
Type: Hydraulic balancer
Boiler Type: dual-function, dual-function with DHW tank, single-function,

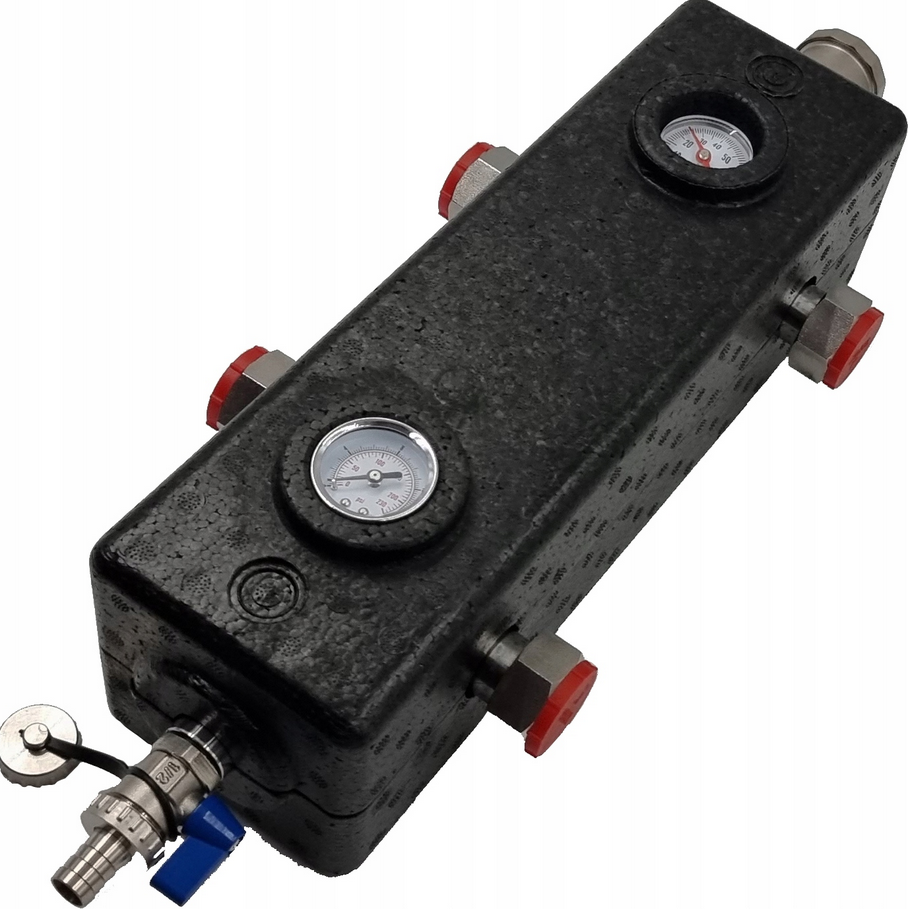

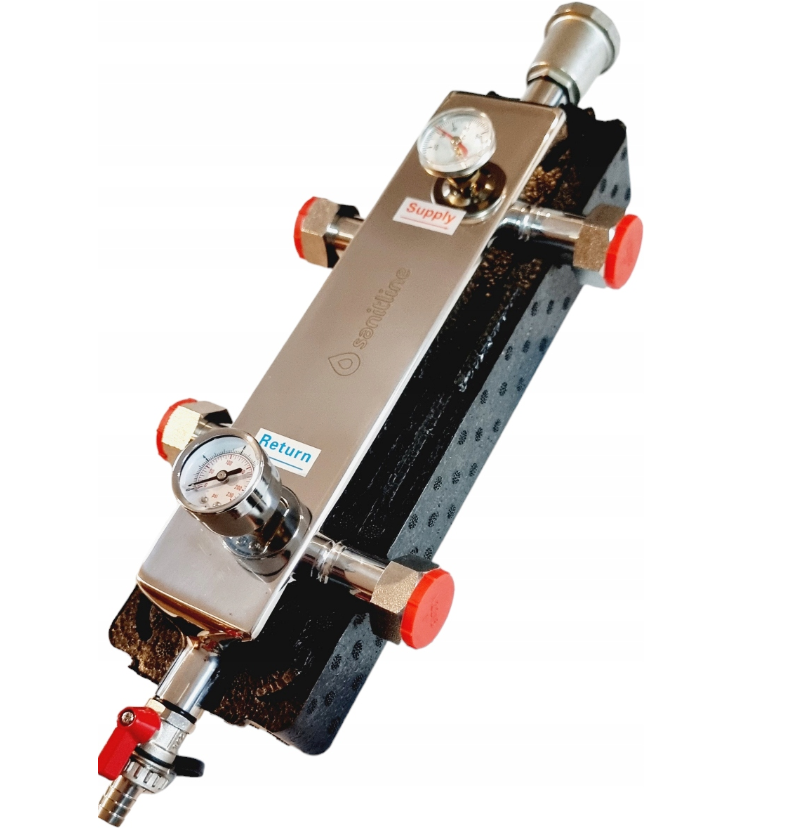

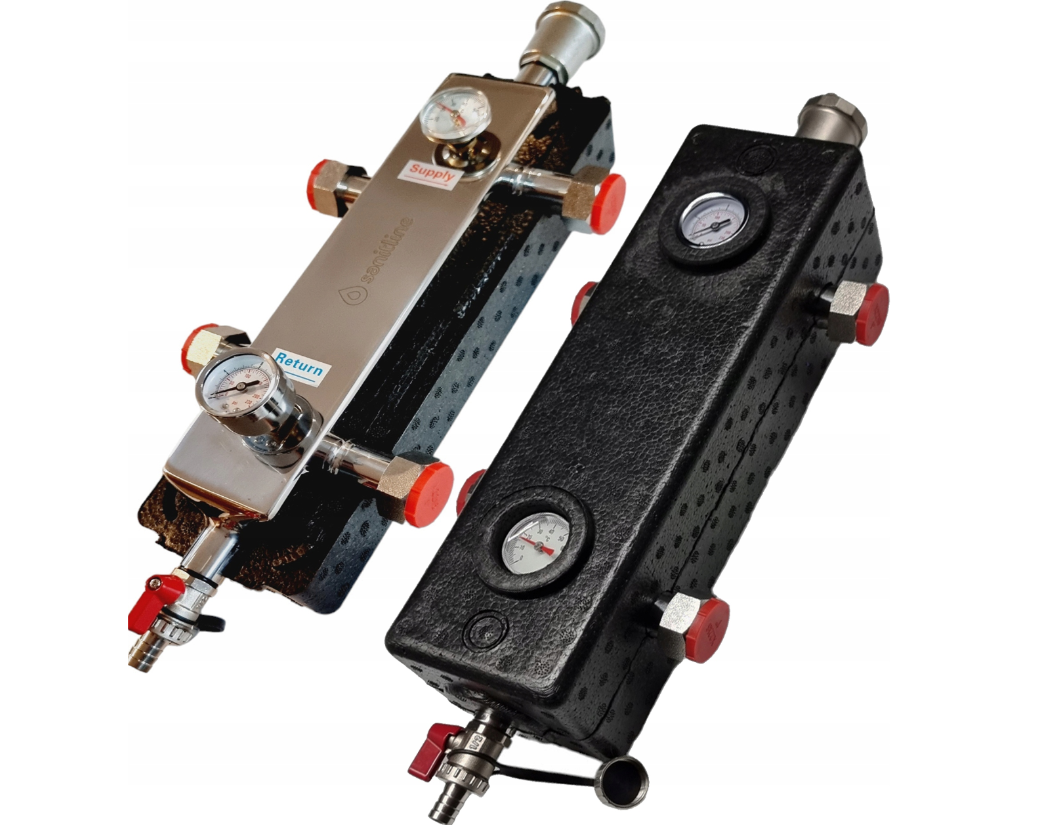

Hydraulic stainless steel balancer with pressure gauge and thermometer
Designed for use on 2 circuits 1″
Diameter: 70mm + 40mm insulation
Length without accessories: 39cm
Length with accessories: 51cm
Connection spacing: 210mm and 140mm
Installation connection stubs: 4x 1″
Weight: 3000g.
Flow rate: max 4200 l/h
Capacity: 1500 ml
Nominal pressure 10bar
Maximum clutch operating temperature: 100°C
Header insulated with rigid foam.
Power: 65kW
The set includes:
included in set :
automatic air vent 1/2″
drain cock 1/2″
mounting bracket
expansion anchors
pressure gauge
thermometer
Hydraulic Balancer
insulation
screws
The Header is connected to the heating system using external threads 1″.
