Description

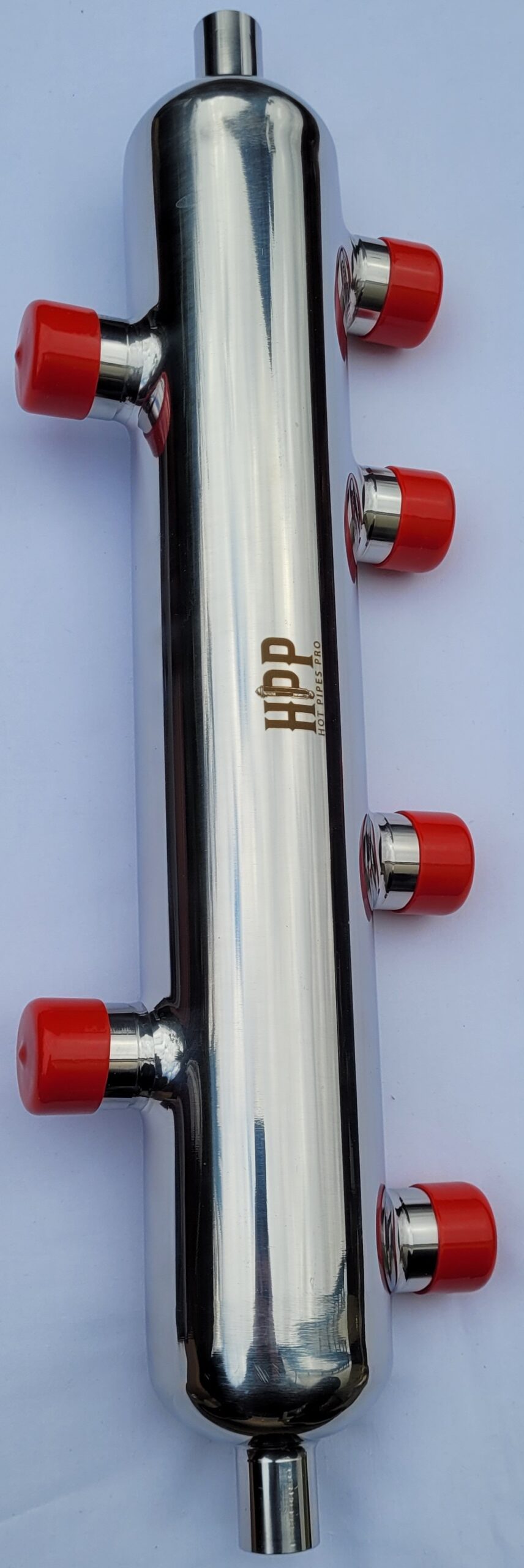

Low Loss Header – Hydraulic Balancer
Boiler Type: Dual-function, Dual-function with DHW tank, Single-function
Material: Stainless Steel 304 GRADE
Designed For: Use on 2 circuits, 1 1/4″ (DN 32) connection8
Installation Connection: 4x 1 1/4″ (DN 32) – external thread
Power: 70kW
Flow Rate: Max 4800 l/h
Capacity: 2.4 l
Nominal Pressure: 10 bar
Max Operating Temperature: 100°C
Insulation: Polyethylene Rigid Foam
Compatibility: Suitable for heating pumps up to 70 kW
Key Features:
- Space-Saving Alternative to Buffer Tanks: Replaces buffer tanks when space is limited, ensuring efficient hydraulic separation.
- Compatible with Multi-Source Systems: Works with multiple heat pump systems and mixed heat sources like solar, gas, or coal heating systems.
- Reliable Separation of Pumping Circuits: Separates pumping circuits for single or dual heat sources, ensuring optimal hydraulic balance.
- Balanced Pressure and Temperature Distribution: Prevents fluctuations, protecting system components and maximizing efficiency.
- Enhanced Pump Performance: Distributes flow rates evenly, reducing pump strain and extending service life.
- Air Venting and Impurity Removal: Built-in air vent and impurity removal with a dedicated drain valve for system integrity.
- Temperature Boost Function: Optionally raises the temperature of return water, improving system efficiency.
- Compact and Easy to Install: Comes with mounting brackets, screws, and insulation for quick installation.
Included Inset:
Hydraulic Balancer
-
- Hydraulic Balancer
- Automatic Air Vent 1/2″
- Drain Cock 1/2″
- Mounting Bracket
- Insulation
- Screws

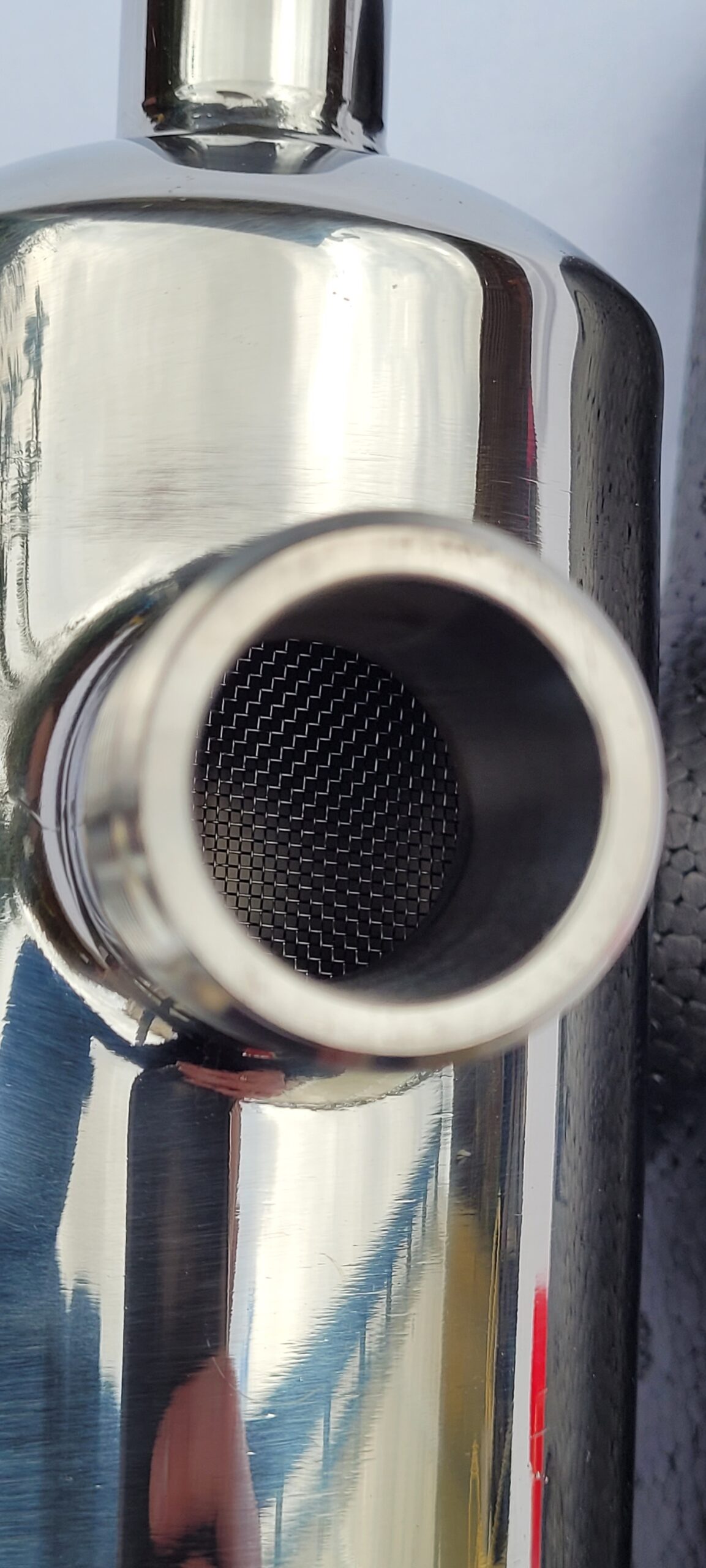

premium low loss headers feature a unique internal Stainless Steel Mesh for:
Improved Efficiency: Enhances water mixing.
Better Air Removal: Traps and eliminates air.
Enhanced Cleanliness: Filters debris, protecting your boiler.
Easy Maintenance: Debris removal via bottom drain.
HPP – HOT PIPES PRO quality is unmatched, ensuring superior performance and longevity
Connection: The Header connects to the heating system using external threads 1 1/4″ (DN 32).
